Products
Lab Scale supercritical fluid extraction
Category：
Products
Extraction & Distillation
Extraction system
- Product description
- Cases
-
- Commodity name: Lab Scale supercritical fluid extraction
- Commodity ID: 924
Supercritical CO2 extraction, a high efficient method typically used when extracting plants, involves filtering plants through a series of separation tank that control temperature and pressure.

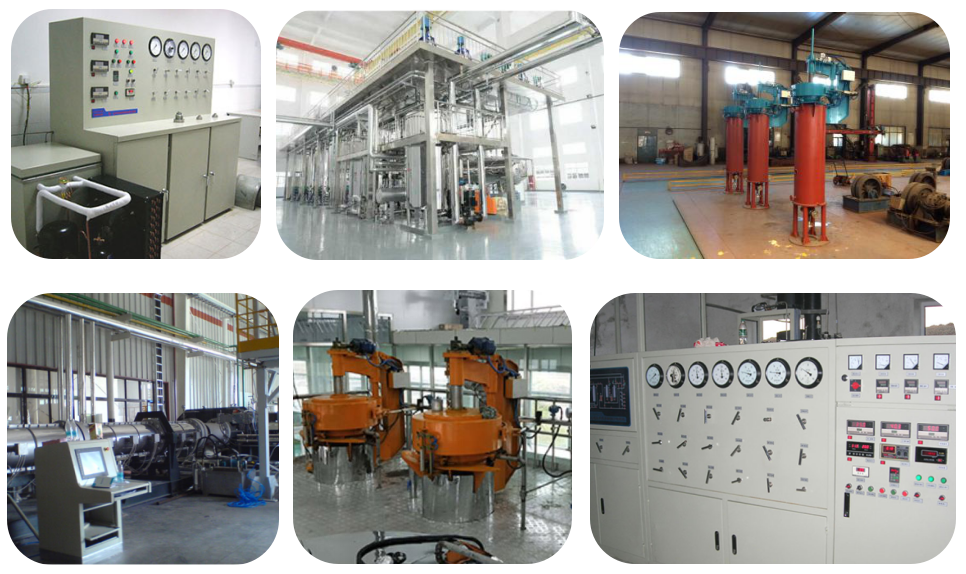

Lab Scale Supercritical CO2 Extraction
Supercritical CO2 extraction, a high efficient method typically used when extracting plants, involves filtering plants through a series of separation tank that control temperature and pressure.
Lab supercritical CO2 extraction unit, including extraction kettle, separation tank, heat exchanger and carbon dioxide storage tanks, etc., which is mainly used in all kinds of plant essential oil, Hemp oil extraction extracted essence, plant pigments and a variety of active ingredients of traditional Chinese medicine, etc. And this series is also widely used in aerogel preparation (dry) of insulation materials, textile printing and dyeing industry .
Main application: Hemp oil extraction; Essential oil extraction;
Features
- Easy to operate and adjust.
- Intermittent or continuous work, co-solvent can be added if possible.
- Low operating temperature to keep the extracts natural.
- Faster extractions and cold separation processing.
- Closed loop system recovers 95% of the CO2.
- No residue of solvent, no nitrate and ions of heavy metal.
- Accuracy temperature and pressure control and display system.
- Fully automated and PLC can be designed.
- Customized according to customer needs.
Why is CO2 Better Than Ethanol Extraction for Hemp?
Although the cost of Ethanol equipment for larger scale extractions is cheaper than similar scale SFE equipment, the extract that you get from ethanol extraction requires much more post-processing because you are left with a very sticky resin. CO2 does not require as much post-processing and is a better choice than ethanol.
Specifications
No. Model
Capacity
Pressure (MPa)
Temperature
(℃)
Power
(kW)
CO2 Pump
Flow(L/H)
Dimension
(mm)
1
SPE0.5
0.5L*1
50
85
10
50
2500*2500*1600
2
SPE1
1L*1
10
50
2500*2500*1600
3
SPE5
5L*1
18
50
2500*2500*1600
4
SPE10
10L*1
5L*2
40
18
100
3000*2500*1600
5
SPE20
10L*2
25
200
3000*3000*1800
6
SPE30
10L*3
30
210
5000*4800*1800
7
SPE48
24L*2
45
400
5000*5000*4200
8
SPE96
24L*4
58
600
5800*5000*4200
9
SPE100
50L*2
60
800
6200*6000*4500
10
SPE120
30L*4
60
800
6800*6000*4500
11
SPE150
50L*3
63
1000
7200*6000*4500
12
SPE200
50L*4
65
1000
7800*7000*4500
For capacity above 200L, will be custom made.

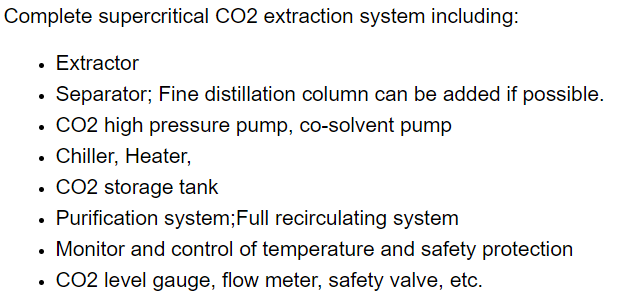

Configuration

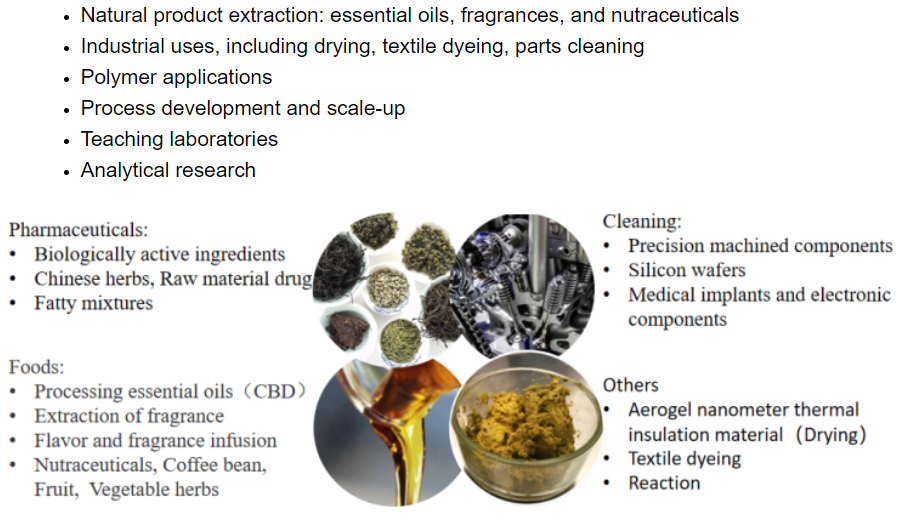

Applications
Supercritical CO2 extraction is especially suitable for the extraction of fat-soluble with high boiling point, heat-sensitive substances, biological products, food and medicine.
